丂Ham Radio

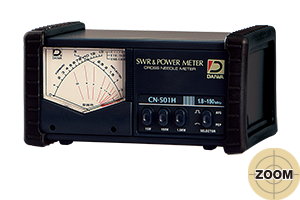

     仭丂SWR & Power Meter




CN-501H






婓朷彫攧壙奿丂16,000墌乮惻暿乯




仭Feature
FREQUENCY丗1.8乣150MHz
POWER RANGE丗15/150/1500W
INPUT CONNECTORS 丗M

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same time.

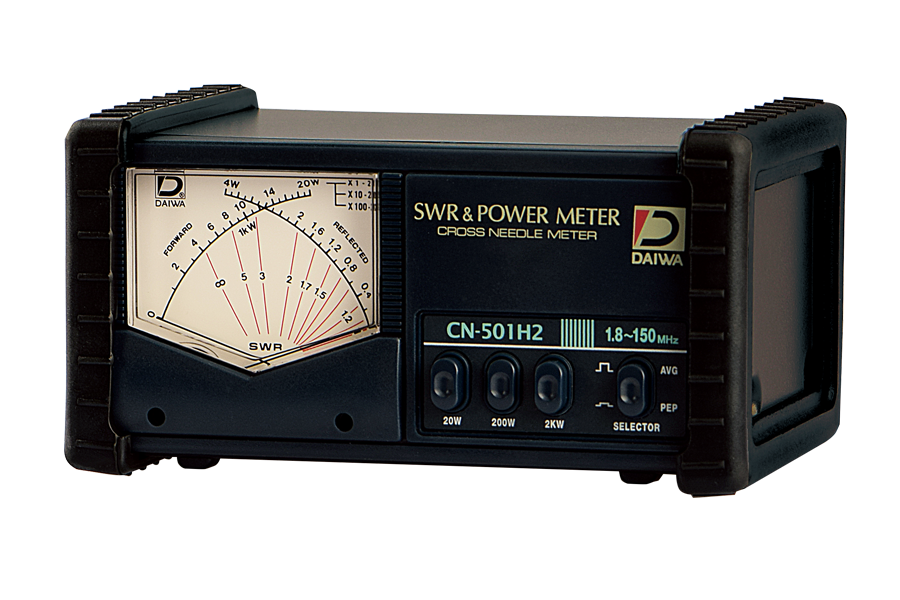

SWR & Power Meter



















CN-501H2






婓朷彫攧壙奿丂17,000墌乮惻暿乯




仭Feature
FREQUENCY丗1.8乣150MHz
POWER RANGE丗20/200/2000W
INPUT CONNECTORS 丗M

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same time.

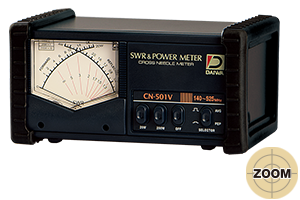

SWR & Power Meter



















CN-501V






婓朷彫攧壙奿丂16,000墌乮惻暿乯




仭Feature
FREQUENCY丗140乣525MHz
POWER RANGE丗20/200W
INPUT CONNECTORS 丗 M or N

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same time.

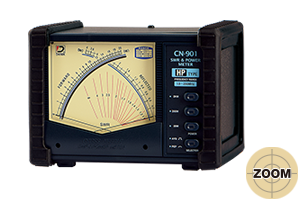

SWR & Power Meter



















CN-901HP






婓朷彫攧壙奿丂26,000墌乮惻暿乯




仭Feature
FREQUENCY丗1.8乣200MHz
POWER RANGE丗20/200/2000W
INPUT CONNECTORS 丗 M

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same.
HP type can also measure P.E.P Peak Power in SSB operation.
(can not measure Reflected Power range.)

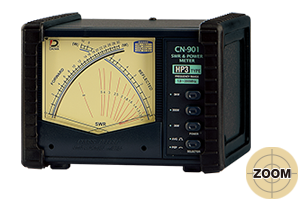

SWR & Power Meter



















CN-901HP3






婓朷彫攧壙奿丂30,000墌乮惻暿乯




仭Feature
FREQUENCY丗1.8乣200MHz
POWER RANGE丗30/300/3000W
INPUT CONNECTORS 丗 M

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same.
HP3 type can also measure P.E.P Peak Power in SSB operation.
(can not measure Reflected Power range.)

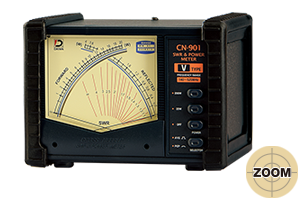

SWR & Power Meter



















CN-901V






婓朷彫攧壙奿丂26,000墌乮惻暿乯




仭Feature
FREQUENCY丗140乣525MHz
POWER RANGE丗20/200W
INPUT CONNECTORS 丗 M or N

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same time.


SWR & Power Meter



















CN-801S嘦






婓朷彫攧壙奿丂42,000墌乮惻暿乯




仭Feature
FREQUENCY丗900乣2500MHz
POWER RANGE丗0.2/2/20W
INPUT CONNECTORS 丗 N

SWR and Power indicators are installed in one meter unit.One scale will
be indicated at the crossing point of the 2 needles. This unique feature
makes it possible to read all of Forward Power, Reflected Power and SWR
at the same time.



SWR & Power Meter
